OB-Xd WebCLAP

discoDSP OB-Xd 2.10, the Oberheim OB-X inspired virtual analog synthesizer, compiled as a direct WebCLAP (WCLAP) plugin with its own web editor.

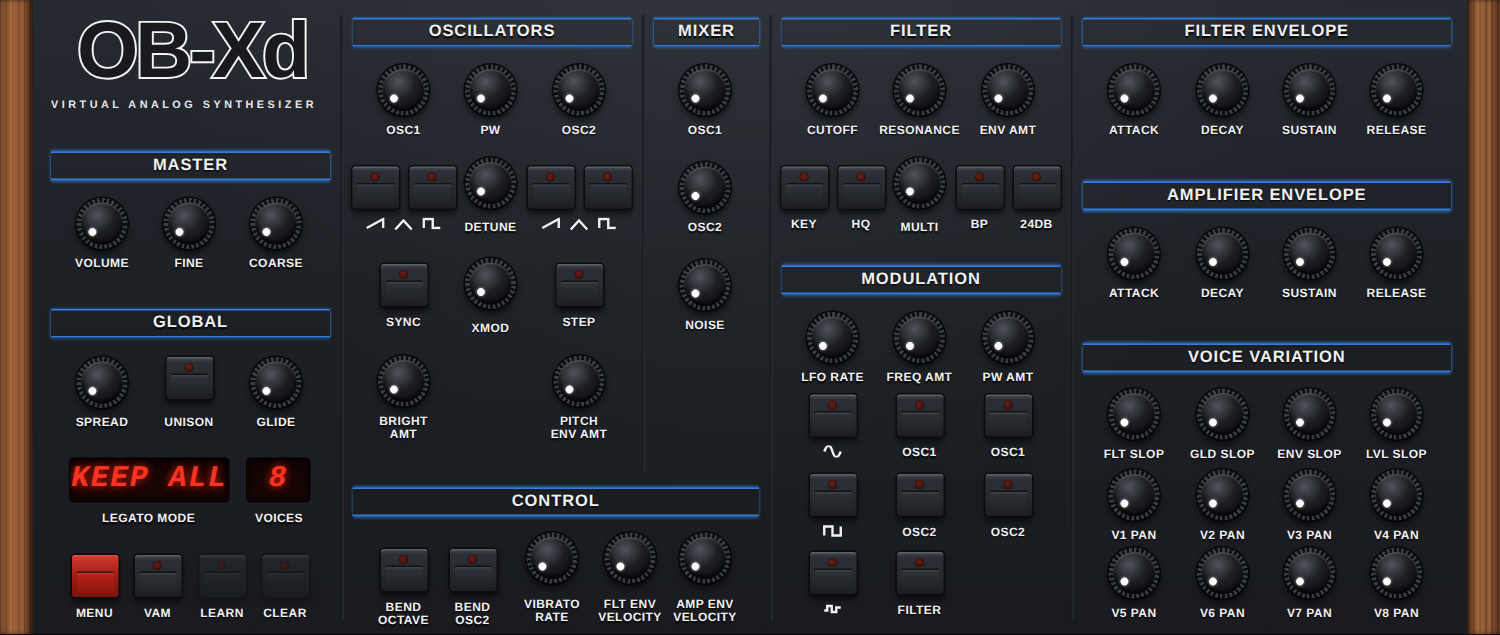

The OB-Xd web editor panel
Download OB-Xd.wclap.tar.gz 271 KB · version 2.10.0-wclap · 68b124b2e84a

SHA-256 cff0c0f4fe2894e85622508c9e1a9b95bfb7ec0ff904bdc33da77a3fa87a92e0 · checksum file · bundle file checksums · build.json

Install in buzz-remote

  1. Open Machines → Plugins…
  2. Paste this URL into Package URL and choose Install URL (or download the archive and use Install File…):
    OB-Xd.wclap.tar.gz
  3. Choose Restart Audio Engine, then add it from Machines → New Machine → Generators → discoDSP → OB-Xd.
  4. Double-click the machine to open its editor.

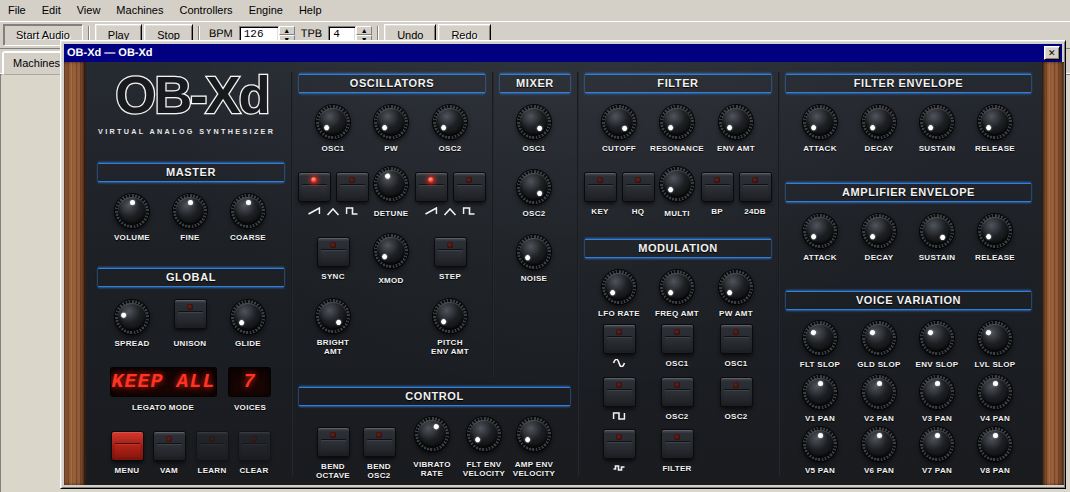

The OB-Xd editor open inside buzz-remote

Editor preview

The web editor also opens on its own as a static preview, without a host or sound.

What's in the package

Plugincom.discodsp.ob-xd, stereo instrument, CLAP and MIDI note input
Parametersall 77 OB-Xd engine parameters, stable ids, OB-Xd's display text
StateOB-Xd's 128-program bank in desktop OB-Xd's own format
Editorclap.gui (webview API) and clap.webview/3, embedded in the module
Modulemodule.wasm, 829 KB, wasi-sdk 34, no wasm exceptions, WASI preview1 only
SHA-256 76250077d5be52e17fef655b912238cf5150fc5e1215284bea5ed381f4da6dd0
LicenseGPL-3.0 (OB-Xd); the license text ships in the bundle
